Motive behind Data pre-processing
Motive behind Data Processing or Mining is obtaining data and process it to create models for analysis. Insights obtained from these models support decision-making process. Before modelling, incomplete data as well as data which does not contribute towards analysis are pre-processed using:
- Normalization
- Dimensionality reduction
This notebook describes :
- How PCA is implemnted manually
- How PCA boosts classsfication performance using only 50% of dimnesions of Input features
Principal Component Analysis
Dimensionality Reduction is data transformation technique that is used to reduce multidimensional data sets to a lower number of dimensions for further analysis. Its goal is to extract the important information from the database.
Techniques for Dimensionality Reduction
- Elimination : Drop variables with lesser correlation with target variable
- This technique achieves results, but we dropped dimensions. Their effect on target variable [however minimal] is completely unaccounted for
- Extraction : Analyze varaibles and EXTRACT NEW varaibles [dimensions] from them. Insights from all variables are preserved and variance in target variable can be completely described these new dimensions.
- This is methodlogy behind PCA : To Decompose data sets as a function of the variance in the data
- PCA represents extracted information as a set of new orthogonal variables called principal components, and to display the pattern of similarity of the observations and of the variables as points in maps.
Import necessary libraries
import warnings
import pandas as pd
import numpy as np
from numpy import mean
from numpy import std
import matplotlib.pyplot as plt
import seaborn as sns
from sklearn.preprocessing import StandardScaler
from sklearn.model_selection import train_test_split
from sklearn.linear_model import LogisticRegression
%matplotlib inline
warnings.filterwarnings('ignore')
Read red wine data
# references:
# https://stackoverflow.com/questions/32400867/pandas-read-csv-from-url
# https://svaderia.github.io/articles/downloading-and-unzipping-a-zipfile/
import io
import requests
url="https://archive.ics.uci.edu/ml/machine-learning-databases/wine-quality/winequality-red.csv"
s=requests.get(url).content
df_red_wine=pd.read_csv(io.StringIO(s.decode('utf-8')), sep=";")
print("shape of red wine data: ", df_red_wine.shape, "\n")
df_red_wine.head()
shape of red wine data: (1599, 12)
| fixed acidity | volatile acidity | citric acid | residual sugar | chlorides | free sulfur dioxide | total sulfur dioxide | density | pH | sulphates | alcohol | quality | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 7.4 | 0.70 | 0.00 | 1.9 | 0.076 | 11.0 | 34.0 | 0.9978 | 3.51 | 0.56 | 9.4 | 5 |
| 1 | 7.8 | 0.88 | 0.00 | 2.6 | 0.098 | 25.0 | 67.0 | 0.9968 | 3.20 | 0.68 | 9.8 | 5 |
| 2 | 7.8 | 0.76 | 0.04 | 2.3 | 0.092 | 15.0 | 54.0 | 0.9970 | 3.26 | 0.65 | 9.8 | 5 |
| 3 | 11.2 | 0.28 | 0.56 | 1.9 | 0.075 | 17.0 | 60.0 | 0.9980 | 3.16 | 0.58 | 9.8 | 6 |
| 4 | 7.4 | 0.70 | 0.00 | 1.9 | 0.076 | 11.0 | 34.0 | 0.9978 | 3.51 | 0.56 | 9.4 | 5 |
df_red_wine['quality'].describe()
count 1599.000000
mean 5.636023
std 0.807569
min 3.000000
25% 5.000000
50% 6.000000
75% 6.000000
max 8.000000
Name: quality, dtype: float64
Convert to a classification problem
df_red_wine['quality'] = [1 if quality >= 6 else 0 for quality in df_red_wine['quality']]

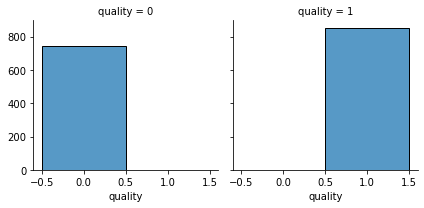

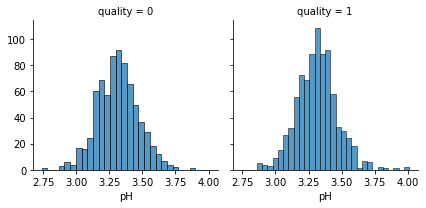

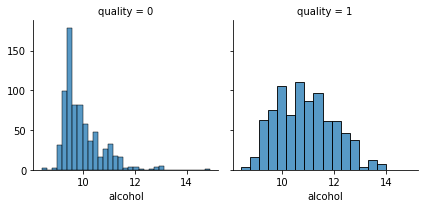

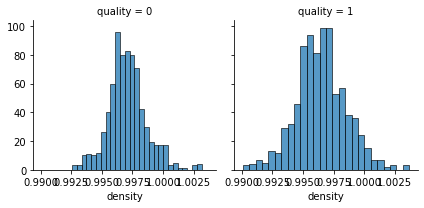

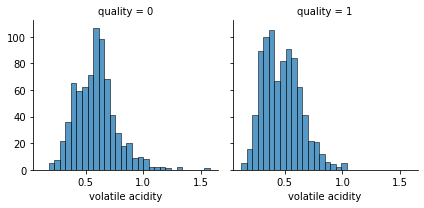

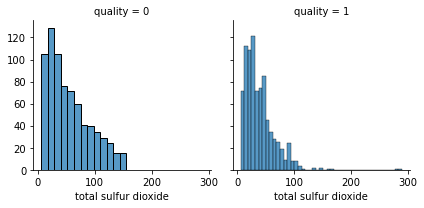

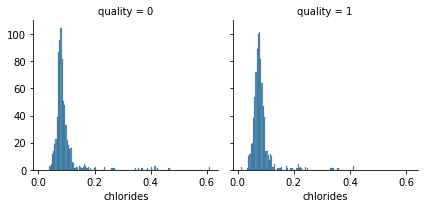

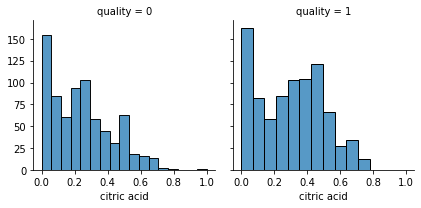

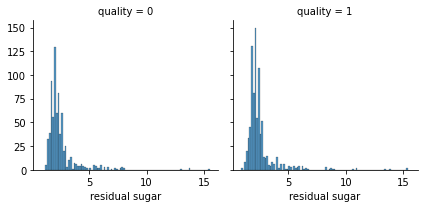

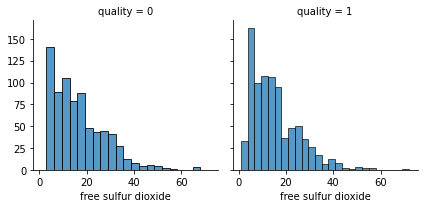

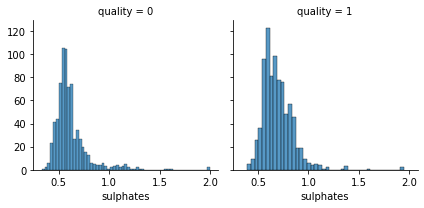

Distribution of data
Right skewed normal distribution is genral tendancy of data.
sns.color_palette("Set2")
for col in df_red_wine.columns:
g = sns.FacetGrid(df_red_wine, col="quality")
g.map(sns.histplot, col)
Normalization of input features
- Target feature ‘quality’ is ommited to form set of input features X
- PCA “extracts” i.e. converts input features into Principal compoents which Maximize Variance
- Standardisation i.e. Z-score normalisation is performed on data. It scales data to N(0,1)
- Majority of data is normally distributed, so standardization is good choice
X = df_red_wine.drop(['quality'], axis=1)
X_std = StandardScaler().fit_transform(X.values.astype('float64'))
X = pd.DataFrame(X_std, index=X.index, columns=X.columns)
X.head()
| fixed acidity | volatile acidity | citric acid | residual sugar | chlorides | free sulfur dioxide | total sulfur dioxide | density | pH | sulphates | alcohol | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | -0.528360 | 0.961877 | -1.391472 | -0.453218 | -0.243707 | -0.466193 | -0.379133 | 0.558274 | 1.288643 | -0.579207 | -0.960246 |
| 1 | -0.298547 | 1.967442 | -1.391472 | 0.043416 | 0.223875 | 0.872638 | 0.624363 | 0.028261 | -0.719933 | 0.128950 | -0.584777 |
| 2 | -0.298547 | 1.297065 | -1.186070 | -0.169427 | 0.096353 | -0.083669 | 0.229047 | 0.134264 | -0.331177 | -0.048089 | -0.584777 |
| 3 | 1.654856 | -1.384443 | 1.484154 | -0.453218 | -0.264960 | 0.107592 | 0.411500 | 0.664277 | -0.979104 | -0.461180 | -0.584777 |
| 4 | -0.528360 | 0.961877 | -1.391472 | -0.453218 | -0.243707 | -0.466193 | -0.379133 | 0.558274 | 1.288643 | -0.579207 | -0.960246 |
Statistics of normalized Input features
- As observed, all features have mean ~ 0; standard deviation ~ 1
- min and max of features vary as per distance of a datapoint from mean varies. Effect of outliers can not be compensated for in Norm(0,1).
X.describe()
| fixed acidity | volatile acidity | citric acid | residual sugar | chlorides | free sulfur dioxide | total sulfur dioxide | density | pH | sulphates | alcohol | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| count | 1.599000e+03 | 1.599000e+03 | 1.599000e+03 | 1.599000e+03 | 1.599000e+03 | 1.599000e+03 | 1.599000e+03 | 1.599000e+03 | 1.599000e+03 | 1.599000e+03 | 1.599000e+03 |
| mean | 3.554936e-16 | 1.733031e-16 | -8.887339e-17 | -1.244227e-16 | 3.910429e-16 | -6.221137e-17 | 4.443669e-17 | 2.364032e-14 | 2.861723e-15 | 6.754377e-16 | 1.066481e-16 |
| std | 1.000313e+00 | 1.000313e+00 | 1.000313e+00 | 1.000313e+00 | 1.000313e+00 | 1.000313e+00 | 1.000313e+00 | 1.000313e+00 | 1.000313e+00 | 1.000313e+00 | 1.000313e+00 |
| min | -2.137045e+00 | -2.278280e+00 | -1.391472e+00 | -1.162696e+00 | -1.603945e+00 | -1.422500e+00 | -1.230584e+00 | -3.538731e+00 | -3.700401e+00 | -1.936507e+00 | -1.898919e+00 |
| 25% | -7.007187e-01 | -7.699311e-01 | -9.293181e-01 | -4.532184e-01 | -3.712290e-01 | -8.487156e-01 | -7.440403e-01 | -6.077557e-01 | -6.551405e-01 | -6.382196e-01 | -8.663789e-01 |
| 50% | -2.410944e-01 | -4.368911e-02 | -5.636026e-02 | -2.403750e-01 | -1.799455e-01 | -1.793002e-01 | -2.574968e-01 | 1.760083e-03 | -7.212705e-03 | -2.251281e-01 | -2.093081e-01 |
| 75% | 5.057952e-01 | 6.266881e-01 | 7.652471e-01 | 4.341614e-02 | 5.384542e-02 | 4.901152e-01 | 4.723184e-01 | 5.768249e-01 | 5.759223e-01 | 4.240158e-01 | 6.354971e-01 |
| max | 4.355149e+00 | 5.877976e+00 | 3.743574e+00 | 9.195681e+00 | 1.112703e+01 | 5.367284e+00 | 7.375154e+00 | 3.680055e+00 | 4.528282e+00 | 7.918677e+00 | 4.202453e+00 |
PCA calculation : Steps
- Calculating the covariance matrix
- Calculating the eigenvalues and eigenvector
- Forming Principal Components
- Projection into the new feature space
Covariance matrix
Dimensions {X1, X2,..Xn} = {fixed acidity, volatile acidity, citric acid, residual sugar, chlorides….pH, sulphates, alcohol}
Cov(XX) is given by \begin{bmatrix}\mathrm {E} [(X_{1}-\operatorname {E} [X_{1}])(X_{1}-\operatorname {E} [X_{1}])]&\mathrm {E} [(X_{1}-\operatorname {E} [X_{1}])(X_{2}-\operatorname {E} [X_{2}])]&\cdots &\mathrm {E} [(X_{1}-\operatorname {E} [X_{1}])(X_{n}-\operatorname {E} [X_{n}])]\\\mathrm {E} [(X_{2}-\operatorname {E} [X_{2}])(X_{1}-\operatorname {E} [X_{1}])]&\mathrm {E} [(X_{2}-\operatorname {E} [X_{2}])(X_{2}-\operatorname {E} [X_{2}])]&\cdots &\mathrm {E} [(X_{2}-\operatorname {E} [X_{2}])(X_{n}-\operatorname {E} [X_{n}])]\\\vdots &\vdots &\ddots &\vdots \\\mathrm {E} [(X_{n}-\operatorname {E} [X_{n}])(X_{1}-\operatorname {E} [X_{1}])]&\mathrm {E} [(X_{n}-\operatorname {E} [X_{n}])(X_{2}-\operatorname {E} [X_{2}])]&\cdots &\mathrm {E} [(X_{n}-\operatorname {E} [X_{n}])(X_{n}-\operatorname {E} [X_{n}])]\end{bmatrix}
cov_matrix = np.cov(X.T)
cov_matrix[:3]
array([[ 1.00062578, -0.25629118, 0.67212377, 0.11484855, 0.09376383,
-0.15389043, -0.11325227, 0.66846534, -0.68340559, 0.18312019,
-0.06170686],
[-0.25629118, 1.00062578, -0.55284143, 0.00191908, 0.06133613,
-0.0105104 , 0.07651786, 0.02204002, 0.23508431, -0.26115001,
-0.20241462],
[ 0.67212377, -0.55284143, 1.00062578, 0.14366701, 0.20395046,
-0.06101629, 0.03555526, 0.36517555, -0.54224326, 0.31296577,
0.10997202]])
Eigenvalues and Eigenvector
eigenvalues, eigenvectors = np.linalg.eig(cov_matrix)
for val in eigenvalues:
print(val)
3.1010718226728273
1.9271148896585149
1.5515137913334218
1.2139917499341308
0.9598923792754817
0.059595582455006985
0.18144664164085156
0.34485778773040704
0.42322137844374963
0.5841565453623766
0.6600210359988645
for val in eigenvectors.T:
print(val)
[ 0.48931422 -0.23858436 0.46363166 0.14610715 0.21224658 -0.03615752
0.02357485 0.39535301 -0.43851962 0.24292133 -0.11323206]
[-0.11050274 0.27493048 -0.15179136 0.27208024 0.14805156 0.51356681
0.56948696 0.23357549 0.00671079 -0.03755392 -0.38618096]
[-0.12330157 -0.44996253 0.23824707 0.10128338 -0.09261383 0.42879287
0.3224145 -0.33887135 0.05769735 0.27978615 0.47167322]
[-0.22961737 0.07895978 -0.07941826 -0.37279256 0.66619476 -0.04353782
-0.03457712 -0.17449976 -0.00378775 0.55087236 -0.12218109]
[-0.08261366 0.21873452 -0.05857268 0.73214429 0.2465009 -0.15915198
-0.22246456 0.15707671 0.26752977 0.22596222 0.35068141]
[-0.63969145 -0.0023886 0.0709103 -0.18402996 -0.05306532 0.05142086
-0.0687016 0.5673319 -0.3407109 -0.06955538 0.31452591]
[-0.24952314 0.36592473 0.62167708 0.09287208 -0.21767112 0.24848326
-0.37075027 -0.23999012 -0.0109696 0.11232046 -0.3030145 ]
[ 0.19402091 -0.1291103 -0.38144967 0.00752295 0.11133867 0.63540522
-0.59211589 0.02071868 -0.16774589 -0.05836706 0.03760311]
[-0.17759545 -0.07877531 -0.37751558 0.29984469 -0.35700936 -0.2047805
0.01903597 -0.23922267 -0.56139075 0.37460432 -0.21762556]
[-0.35022736 -0.5337351 0.10549701 0.29066341 0.37041337 -0.11659611
-0.09366237 -0.17048116 -0.02513762 -0.44746911 -0.3276509 ]
[ 0.10147858 0.41144893 0.06959338 0.04915555 0.30433857 -0.01400021
0.13630755 -0.3911523 -0.52211645 -0.38126343 0.36164504]
eigen_map = list(zip(eigenvalues, eigenvectors.T))
eigen_map.sort(key=lambda x: x[0], reverse=True)
sorted_eigenvalues = [pair[0] for pair in eigen_map]
sorted_eigenvectors = [pair[1] for pair in eigen_map]
Formation of Principal Components
sorted_eigenvalues
[3.1010718226728273,
1.9271148896585149,
1.5515137913334218,
1.2139917499341308,
0.9598923792754817,
0.6600210359988645,
0.5841565453623766,
0.42322137844374963,
0.34485778773040704,
0.18144664164085156,
0.059595582455006985]
pd.DataFrame(sorted_eigenvectors, columns=df_red_wine.drop(['quality'], axis=1).columns)
| fixed acidity | volatile acidity | citric acid | residual sugar | chlorides | free sulfur dioxide | total sulfur dioxide | density | pH | sulphates | alcohol | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 0.489314 | -0.238584 | 0.463632 | 0.146107 | 0.212247 | -0.036158 | 0.023575 | 0.395353 | -0.438520 | 0.242921 | -0.113232 |
| 1 | -0.110503 | 0.274930 | -0.151791 | 0.272080 | 0.148052 | 0.513567 | 0.569487 | 0.233575 | 0.006711 | -0.037554 | -0.386181 |
| 2 | -0.123302 | -0.449963 | 0.238247 | 0.101283 | -0.092614 | 0.428793 | 0.322415 | -0.338871 | 0.057697 | 0.279786 | 0.471673 |
| 3 | -0.229617 | 0.078960 | -0.079418 | -0.372793 | 0.666195 | -0.043538 | -0.034577 | -0.174500 | -0.003788 | 0.550872 | -0.122181 |
| 4 | -0.082614 | 0.218735 | -0.058573 | 0.732144 | 0.246501 | -0.159152 | -0.222465 | 0.157077 | 0.267530 | 0.225962 | 0.350681 |
| 5 | 0.101479 | 0.411449 | 0.069593 | 0.049156 | 0.304339 | -0.014000 | 0.136308 | -0.391152 | -0.522116 | -0.381263 | 0.361645 |
| 6 | -0.350227 | -0.533735 | 0.105497 | 0.290663 | 0.370413 | -0.116596 | -0.093662 | -0.170481 | -0.025138 | -0.447469 | -0.327651 |
| 7 | -0.177595 | -0.078775 | -0.377516 | 0.299845 | -0.357009 | -0.204781 | 0.019036 | -0.239223 | -0.561391 | 0.374604 | -0.217626 |
| 8 | 0.194021 | -0.129110 | -0.381450 | 0.007523 | 0.111339 | 0.635405 | -0.592116 | 0.020719 | -0.167746 | -0.058367 | 0.037603 |
| 9 | -0.249523 | 0.365925 | 0.621677 | 0.092872 | -0.217671 | 0.248483 | -0.370750 | -0.239990 | -0.010970 | 0.112320 | -0.303015 |
| 10 | -0.639691 | -0.002389 | 0.070910 | -0.184030 | -0.053065 | 0.051421 | -0.068702 | 0.567332 | -0.340711 | -0.069555 | 0.314526 |
Explained Variance : choice of Principal compoents
eigenvalue_sum = sum(eigenvalues)
var_exp = [(v / eigenvalue_sum)*100 for v in sorted_eigenvalues]
cum_var_exp = np.cumsum(var_exp)
cum_var_exp
array([ 28.17393128, 45.68220118, 59.77805108, 70.80743772,
79.52827474, 85.52471351, 90.83190641, 94.67696732,
97.81007747, 99.4585608 , 100. ])
dims = len(df_red_wine.drop(['quality'], axis=1).columns)
plt.clf()
fig, ax = plt.subplots()
ax.plot(range(dims), cum_var_exp, '-o')
plt.xlabel('Number of Components')
plt.ylabel('Percent of Variance Explained')
plt.show()
<Figure size 432x288 with 0 Axes>
It is noted that 6 eigenvectors describe more than 84% of varaince in target variable
ev1 = sorted_eigenvectors[0]
ev2 = sorted_eigenvectors[1]
ev3 = sorted_eigenvectors[2]
ev4 = sorted_eigenvectors[3]
ev5 = sorted_eigenvectors[4]
ev6 = sorted_eigenvectors[5]
eigen_matrix = np.hstack((ev1.reshape(dims,1),
ev2.reshape(dims,1),
ev3.reshape(dims,1),
ev4.reshape(dims,1),
ev5.reshape(dims,1),
ev6.reshape(dims,1)))
eigen_matrix[:3]
array([[ 0.48931422, -0.11050274, -0.12330157, -0.22961737, -0.08261366,
0.10147858],
[-0.23858436, 0.27493048, -0.44996253, 0.07895978, 0.21873452,
0.41144893],
[ 0.46363166, -0.15179136, 0.23824707, -0.07941826, -0.05857268,
0.06959338]])
Y = X.dot(eigen_matrix).join(df_red_wine['quality'])
Y.head()
| 0 | 1 | 2 | 3 | 4 | 5 | quality | |
|---|---|---|---|---|---|---|---|
| 0 | -1.619530 | 0.450950 | -1.774454 | 0.043740 | 0.067014 | -0.913921 | 0 |
| 1 | -0.799170 | 1.856553 | -0.911690 | 0.548066 | -0.018392 | 0.929714 | 0 |
| 2 | -0.748479 | 0.882039 | -1.171394 | 0.411021 | -0.043531 | 0.401473 | 0 |
| 3 | 2.357673 | -0.269976 | 0.243489 | -0.928450 | -1.499149 | -0.131017 | 1 |
| 4 | -1.619530 | 0.450950 | -1.774454 | 0.043740 | 0.067014 | -0.913921 | 0 |

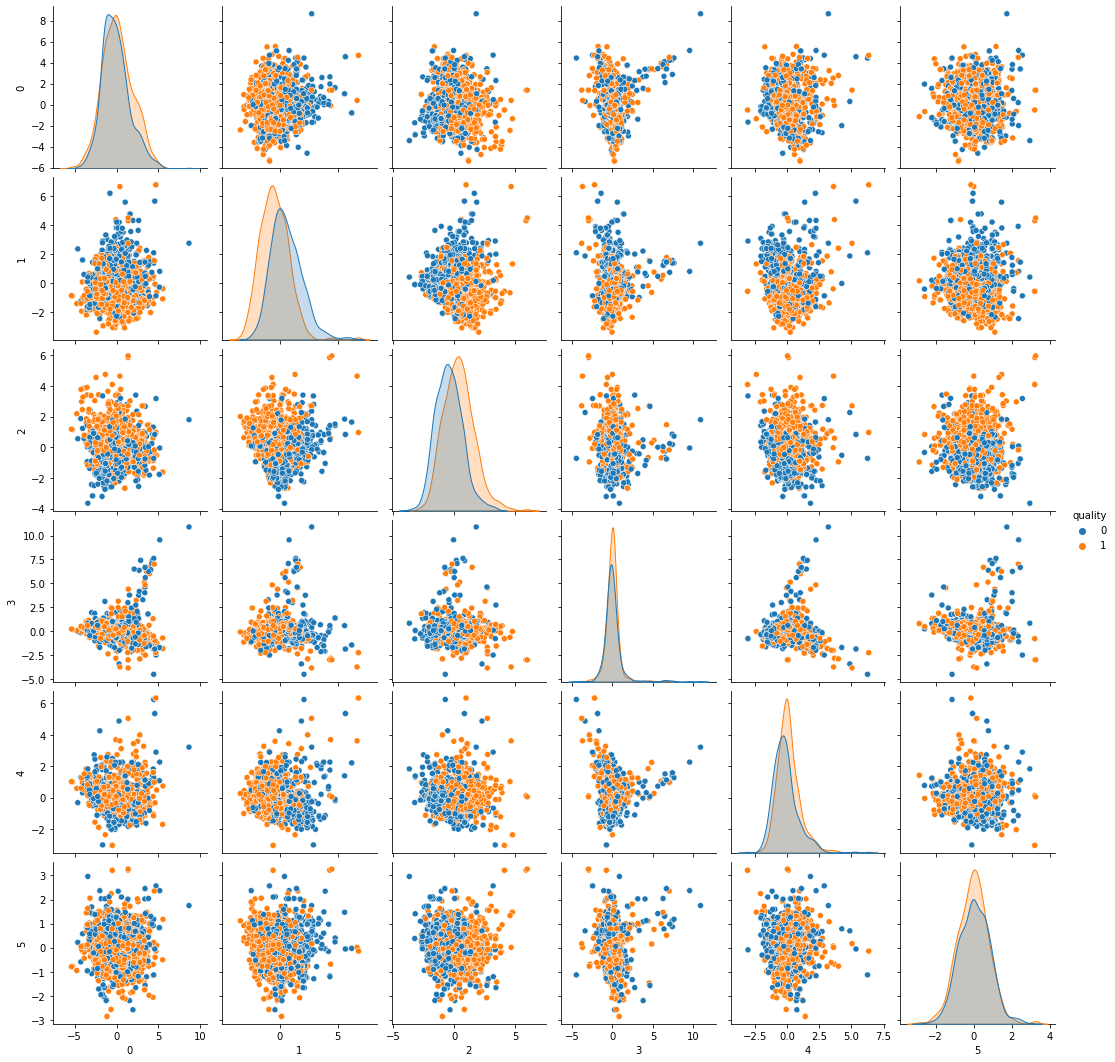

Distribution of PC against each other for Good(1) and Bad(0) quaity of wine
sns.pairplot(data=Y, hue="quality", kind="scatter")
<seaborn.axisgrid.PairGrid at 0x1edbed67688>

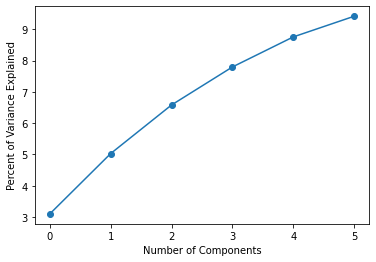

PCA with scikit-learn library
from sklearn.decomposition import PCA
pca = PCA(n_components=0.85)
Y_sklearn = pca.fit_transform(X)
plt.clf()
fig, ax = plt.subplots()
ax.plot(range(6), np.cumsum(pca.explained_variance_), '-o')
plt.xlabel('Number of Components')
plt.ylabel('Percent of Variance Explained')
plt.show()
<Figure size 432x288 with 0 Axes>
np.cumsum(pca.explained_variance_)
array([3.10107182, 5.02818671, 6.5797005 , 7.79369225, 8.75358463,
9.41360567])
Y_sklearn_plt = pd.DataFrame(Y_sklearn,
index=Y.index,
columns=Y.columns[:-1]).join(df_red_wine['quality'])
sns.pairplot(data=Y_sklearn_plt, hue="quality")
<seaborn.axisgrid.PairGrid at 0x1edc1a87608>
Performance of classfier : with and without PCA
Without PCA
y = df_red_wine['quality'].values
# split dataset for training and testing, and use a logistic regression as classifier
X_train, X_test, y_train, y_test = train_test_split(df_red_wine.drop('quality', axis=1), y, test_size=0.25)
classifier = LogisticRegression(random_state= 0)
classifier.fit(X_train, y_train)
LogisticRegression(random_state=0)
y_pred = classifier.score(X_test, y_test)
y_pred
0.7125
With PCA
X_train, X_test, y_train, y_test = train_test_split(Y_sklearn, y, test_size=0.3)
classifier_with_pca = LogisticRegression(random_state=0)
classifier_with_pca.fit(X_train, y_train)
LogisticRegression(random_state=0)
y_pred = classifier_with_pca.score(X_test, y_test)
y_pred
0.7458333333333333
Resources
- https://www.sciencedirect.com/science/article/pii/B9780080448947013038
- H. Abdi and L. J. Williams, “Principal component analysis,” Wiley Interdisciplinary Reviews. Computational Statistics, vol. 2, (4), pp. 433-459, 2010.
